ARCHMI-915P
SKU
archmi-915p
Lead time 21-30 days

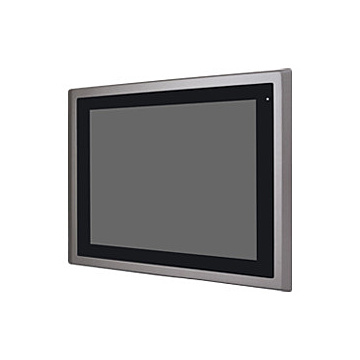

15" Fanless Panel PC with Intel Core i3 CPU, 4GB DDR3 RAM, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis
Details
15" Industrial Compact Size Panel PC
Flat Front Panel Touch Screen
Fanless Design
Intel 4th Gen. Core i3 CPU built-in
Onboard 4GB DDR3L 1600 MHz
9~36V DC wide-ranging power input
Flat Front Panel Touch Screen
Fanless Design
Intel 4th Gen. Core i3 CPU built-in
Onboard 4GB DDR3L 1600 MHz
9~36V DC wide-ranging power input
Specifications
LCD Specifications
15" TFT LCD Panel
Resolution : 1024 x 768, XGA
Brightness : 350 cd/m²
Viewing Angle (H-V): 160/145
Touchscreen
Projected capacitive touch panel
Processor Core Logic System
CPU:
Intel 4th Gen. Core i3-4010U
System Chipset:
SoC
System Memory:
4GB DDR3L SO-DIMM RAM module installed
Ethernet
2 x RJ-45 GbE LAN
I/O Interface
1 x RS232/422/485
1 x RS232
2 x USB 2.0
2 x RJ-45 GbE ports
1 x Audio, Line-out
Storage
1 x 2.5” SATA bay
Expansion
1 x Mini-pcie socket (Full Size)
Power Supply
9-36V DC input
Software Support
Windows 7, Windows 8, Linux
Environment Specifications
Operating Temperature 0°C to 50°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)
Mechanical
Construction: Aluminium housing
Mounting: Panel Mounting , VESA-100
Weight: 4.5kg
Dimension: 410 x 310 x 54.7
Safety: CE
