APC-3103IP
SKU
APC-3103IP
Lead time 21-30 days
0.00EUR

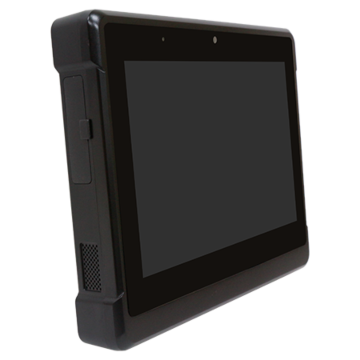

10.1” WXGA total IP66 design plastic panel PC, NXP iMX8M Quad Plus Processor, DDR4 4GB on board, 32GB eMMC, ISOBUS connectors, with projected capacitive touch, wide range 9~60V DC power input
- 10.1” LCD Panel, optional high brightness LED backlight LCD
- NXP i.MX8M Quad Plus Processor
- Fanless design
- Total IP66 with isolated ISOBUS connectors
- Operating system: Android 10.0
- Wide range DC 9~60V power input
- CE/FCC/E Mark
| System | |
| Processor | NXP i.MX8M Quad Plus, 4x Cortex-A53 1.8Ghz |
| Memory | Onboard 4GB LPDDR4-3200Mhz |
| Chipset | |
| Storage | Onboard 32GB eMMC NAND Flash |
| Expansion | 1 x Full-size PCI Express Mini Card slot (USB2.0) 1 x Full-size PCI Express Mini Card slot (PCIe+USB2.0) |
| Display | |
| Screen Size | 10.1" TFT LCD |
| Screen Resolution | 1280*800 |
| Display Ratio | wide |
| Contrast Ratio | 800::1 |
| Brightness | 350 nits / 1000nits |
| Viewing Angle | 170(H)/170(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 (ISOBUS connector) 1 x USB2.0 (Type-A connector) |
| Serial | 1 x RS-232/422/485 |
| Audio | 2 x 2W IP65 Speaker |
| Ethernet | 1 x GbE LAN |
| CAN | 1 x CANBUS 2.0B |
| Membrane control | 1 x Power on/off 2 x Probrammable(Default volume +-) by user define |
| Operating System | |
| Operating System | Android 10 |
| Power | |
| DC Input / Source Voltage | 9-60V DC |
| Power Comsumption | |
| Environment | |
| Operating Temperature | -20ºC to 6A34:AMJ340ºC |
| Humidity Range | 10% to 90% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 269 x 210 x 42 mm |
| Enclosure | |
| Protection | IP66 ALL sides |
| Material | Engineering Plastic front/rear bezel |
| Mounting | VESA75 |
| Certification | |
| Certification | CE / FCC Class A, MIL-STD-810H for vibration/Shock, e-mark |
Cable set incl:
ISOBUS POWER CABLE
ISOBUS COM+CAN
ISOBUS USB+LAN
| Cooling | Fanless |
|---|---|
| Display Size | 10.1" |
| Touch type | Projected Capasitive (PCAP) |
