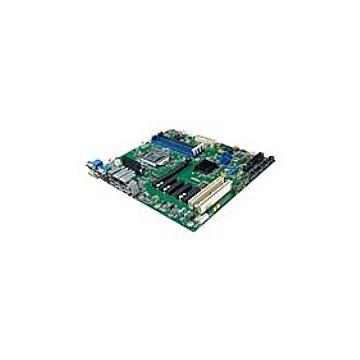

AIMB-787

SKU
AIMB-787G2-00A2
Lead time 21-30 days

LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® ATX with DP/DVI/VGA, DDR4, USB 3.2, M.2, SATA 3.0

  • Intel® 10th generation Core™ i9/i7/i5/i3/Pentium®/Celeron® processor with Q470E chipset
  • Four DIMM sockets up to 128 GB DDR4 2933
  • Triple display DP/DVI-D/VGA and dual GbE LAN
  • M.2, SATA RAID 0, 1, 5, 10, USB 3.2
  • Supports Intel vPro, AMT & TPM technologies
Form Factor
Form Factor Industrial ATX


System
Processor Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron
Security Hardware TPM2.0 (optional)
Chipset Q470E chipset
Storage 4 x SATA-600
1 x M.2 Key M 2280
Memory 4 x 288-pin DDR4-2933/2666 DIMM, up to 128GB
Graphics Intel HD Graphics
I/O Ports
USB 2.0 4 x USB 2.0 ,4 x USB 2.0 (internal)


USB 3.2 4 x USB3.2 , 2 x USB3.2 (internal)


Serial 1 x RS-232
1 x RS-232/422/485 (pin header)
3 x RS-232 (pin header)
Video 1 x DisplayPort
1 x VGA
1 x DVI-D
Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT & Intel® i219-LM)
Other Ports PS/2 KB/Mouse
DIO
Audio MIC-in/Line-in/Line-out
Expansion
Expansion Interface 1 x PCIe x16 (Gen3)
4 x PCIe x4 (Gen3)
2 x PCI (32bit)
Operating System
Operating System Windows10 , Linux
Power
Power Input Standard 12V ATX power
Power Requirements
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 1kg
Dimensions 304,8mm x 244mm
Certification
Certification CE
More Information
Manufacturer / BrandAdvantech
SocketLGA 1200
Form FactorATX
