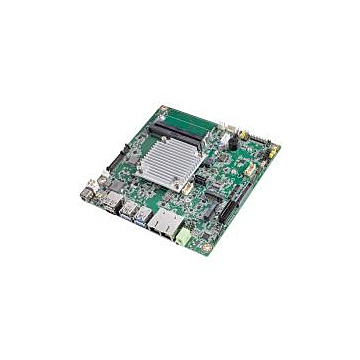

AIMB-218L-S0A1E

SKU

AIMB-218L-S0A1E

Lead time 21-30 days

Intel® Pentium/Celeron Quad Core/Dual Core Mini-ITX with DP++/HDMI/eDP/LVDS, 8 USB, 6 COM, and Dual LAN

Supports Intel Pentium/Celeron processor N6210/N6211/J6412/J6413/J6426/x6413E
Two 260-pin SO-DIMM up to 32 GB DDR4 3200 MHz SDRAM
Supports, DP++ , HDMI, eDP(or LVDS)
Supports 1x M.2 (B-Key) and 1x M.2 E-Key (or 1x PCIe), 6 COMs, 3 USB 3.2 Gen2 & 5 USB 2.0, dual LAN.
Lower total cost of ownership with DC12V support and onboard TPM2.0 (optional) & Amplifier (optional)
Support SUSI, WISE-DeviceOn and Edge AI Suite.

Form Factor
Form Factor	Mini-ITX

System
Processor	Intel Celeron N6211 , 2-Core, 1.2Ghz, TDP 6.5W
Integrated Graphics
Security Hardware	TPM2.0
Chipset
Storage	1 x SATAIII
Storage Support
Memory	2 x 260pin DDR4 SO-DIMM, max 32GB
I/O Ports
USB 2.0	5 x USB2.0
USB 3.0	3 x USB3.0
USB 3.1
Serial	1 xRS-232/422/485 1 xRS-232
Video	1 x DP++ 1 x HDMI
Ethernet	2 x 10/100/1000 Mbps (RTL8111H)
Other Ports	GPIO, HD Audio
Expansion
Expansion Interface	1 x PCIe x16 1 x M.2 M key (Type: 2280) 1 x M.2 E key,(Type: 2230)
Operating System
Operating System	WIN10, LINUX
Power
DC Input / Source Voltage	DC jack, internal 4pin
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)	1.0kg
Dimensions	170 x 170 mm
Certification
Certification	CE
