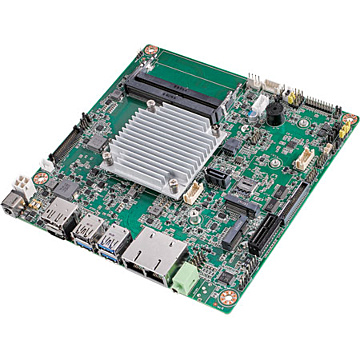

AIMB-218D-S0A1E
SKU
AIMB-218D-S0A1E
Lead time 21-30 days
Intel® Pentium/Celeron Quad Core/Dual Core Mini-ITX with DP++/HDMI/eDP/LVDS, 8 USB, 6 COM, and Dual LAN
- Supports Intel Pentium/Celeron processor N6210/N6211/J6412/J6413/J6426/x6413E
- Two 260-pin SO-DIMM up to 32 GB DDR4 3200 MHz SDRAM
- Supports, DP++ , HDMI, eDP(or LVDS)
- Supports 1x M.2 (B-Key) and 1x M.2 E-Key (or 1x PCIe), 6 COMs, 3 USB 3.2 Gen2 & 5 USB 2.0, dual LAN.
- Lower total cost of ownership with DC12V support and onboard TPM2.0 (optional) & Amplifier (optional)
- Support SUSI, WISE-DeviceOn and Edge AI Suite.
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | Intel® Pentium® Processor J6425, 4-Core |
| Integrated Graphics | Intel Gen 11 Graphics Engines |
| Security Hardware | |
| Chipset | |
| Storage | 1 x SATA-600 |
| Storage Support | |
| Memory | 2 x 260-pin SO-DIMM DDR4 max 32GB |
| Graphics | Intel HD graphics Integrated |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 3 x USB 3.1 Gen2 (rear IO) |
| Serial | 6 x RS-232 (COM2 RS-232/422/485) |
| Video | 1 x HDMI 1.4b 1 x DisplayPort+ |
| Ethernet | 2 x 10/100/1000 Mbps (Realtek 8111H) |
| Other Ports | DIO 8-channel programmable Line-Out 1 x PS/2 keyboard and mouse |
| Expansion | |
| Expansion Interface | E key for wireless module (Type: 2230) B key for storage and LTE module, only support PCIex1 signal (Type: 2242/2280) 1 x PCIe x1 |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2x2) power connector; Supports AT/ATX mode |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170 x 170 mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Advantech |
|---|---|
| Socket | SoC |
| Form Factor | Mini-ITX |
