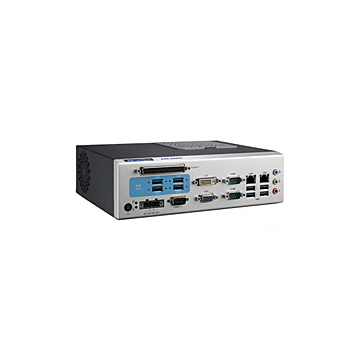

AIIS-3400U-00A1E

* Intel® 6th generation Core i CPU (LGA1151)
* 4-CH USB 3.0 with dedicated controller
* Maximize the USB3.0 bandwidth for multi-cameras
* Compatible with USB 3.0 cameras

Processor Core Logic System

CPU:
Intel® 6th Gen. Core™ i3-6100
Intel® 6th Gen. Core™ i5-6500
Intel® 6th Gen. Core™ i7-6700

Chipset:
Intel H110

System memory:
2 x 240-pin DDR4 SO-DIMM sockets, supporting up to 32B

Graphics
Integrated Intel HD Graphics

Ethernet
LAN1: Intel i219LM
LAN2: Intel i210AT
(Both support Wake on LAN)

Camera interface
CH1~CH4: uPD720202
Dedicated 4x USB3.0

I/O expansion
1 VGA+DVI-D
Isolated 4 DI and 4 DO Channels
2x RS-232/422/485

Power Supply
DC 19 VDC ~ 24 VDC

Expansion Slot
None

Storage
1 x SATA 2.5" bay

Mechanical
Construction:Aluminum alloy
Mounting: Wall-mount
Dimensions: 230 x 70 x 175 mm

Environment Specifications
Operating Temp: 0 ~ 45°C , ambient w/ air flow
Storage Temp: -40 ~ 85°C
Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)
