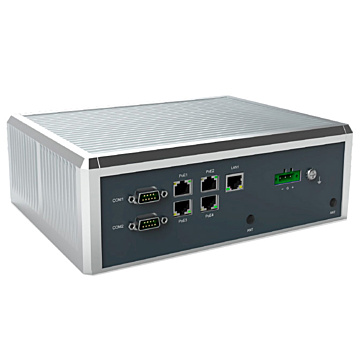

    Fanless edge AI system with NVIDIA® Jetson Xavier™ NX SoM, 1 HDMI, 1 GbE LAN, 4 GbE PoE, 8-CH DI/DO, and 2 COM/CAN for 5G and AMR applications

    • NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
    • Advanced edge AI platform for AMR, AGV and computer vision
    • Wide power input range of 12V/24VDC with ignition power control
    • Supports four GbE PoE for GigE camera and LiDAR connectivity
    • Wide operating temperature from -30°C to +60°C
    • One M.2 Key B slot for 5G/LTE
    • One 8-CH DI/DO & Two DB9 for RS-232/422/485/CAN
    System
    Processor 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
    CPU Board NVIDIA® Jetson Xavier™ NX
    GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
    Chipset SoC
    Memory 1 x 8GB 128-bit LPDDR4x onboard
    Storage Onboard 16GB eMMC (via Jetson Xavier™ NX)
    1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
    1 x Micro SD slot
    I/O Ports
    USB 2.0
    USB 3.1 2x USB 3.1
    Serial 2 x DB9 for RS-232/422/485/CAN (selected by jumper setting)
    Video 1 x HDMI
    Ethernet 1 x 10/100/1000 Mbps Ethernet (Via Jetson Xavier™ NX)
    4 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 30W)
    Other Ports 1 x 8-CH DI/DO
    Expansion
    Expansion Interface 1 x MIPI CSI-2 connector
    1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    1 x M.2 Key B 3050/3042 slot
    1 x SIM slot
    Operating System
    Operating System Linux Ubuntu 18.04
    Power
    DC Input / Source Voltage 12V/24V DC with ignition power control
    Environmental
    Operating Temperature -30°C ~ +60°C
    Humidity Range 10% ~ 95%, non-condensing
    Vibration 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 2.8 kg
    Dimensions 239 x 185.3 x 79.4 mm
    Enclosure
    Material Aluminum / Steel
    Mounting Desk / Wall mounting / DIN-rail /VESA mount
    Certification
    Certification CE, FCC
    More Information
    CoolingFanless
