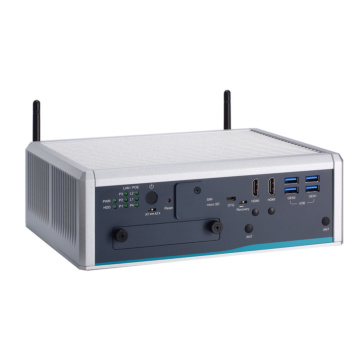

AIE900-902-FL

Customize AIE900-902-FL
AIE900-902-FL

* Required Fields

Your Customization
AIE900-902-FL
AIE900-902-FL

0.00EUR

Summary
    SKU
    AIE900-902-FL
    Lead time 21-30 days

    0.00EUR

    • NVIDIA® Jetson AGX Xavier™ with 512-core Volta GPU with 64 Tensor cores GPU
    • High AI computing performance for GPU-accelerated processing
    • Ideal for intelligent edge applications, AGV, AMR and computer vision
    • Supports M.2 NVMe PCIe x4 SSD slot
    • Wide operating temperature from -30°C to +50°C
    • JetPack supported
    System
    Processor NVIDIA® Jetson AGX Xavier™
    CPU Performance 8-core Carmel ARM® v8.2 64-bit CPU, 8MB L2 + 4MB L3
    Security Hardware
    Chipset SoC
    Storage Onboard 32GB eMMC (via Jetson AGX Xavier™)
    1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
    1 x Micro SD slot
    1 x 2.5" SSD/HDD drive bay


    Memory 1 x 32GB 256-Bit LPDDR4x onboard
    GPU / Graphics 512-Core NVIDIA Volta™ GPU with 64 Tensor Cores
    I/O Ports
    USB 2.0 2x USB 2.0
    USB 3.0 2x USB 3.1 Gen1
    2x USB 3.1 Gen2
    Serial 2 x RS-232 default (or 2 x CAN by jumper settings)
    Video 2 x Lockable HDMI 2.0 with 4K2K supported
    Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT)
    4 x 10/100/1000 Mbps PoE (Intel® i210-IT)
    Other Ports 1 x 8-CH DI/DO
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    1 x M.2 Key E 2230 slot
    1 x SIM slot
    Operating System
    Operating System Linux Ubuntu 18.04 support
    Power
    DC Input / Source Voltage 24 VDC
    Operating Temperature
    Operating Temperature -30°C ~ +50°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 2.8 kg
    Dimensions 239 x 185.3 x 79.4 mm
    Enclosure
    Bezel
    Material Aluminum , IP40
    Mounting Desk / Wall mounting DIN-Rail /VESA
    Certification
    Certification CE, FCC certified
    More Information
    CoolingFanless
