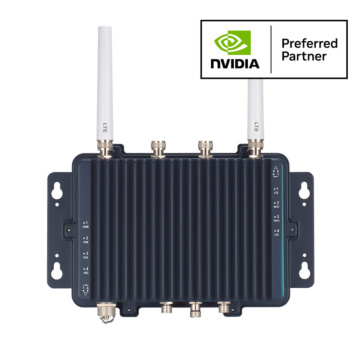

    Rugged IP67-rated fanless edge AI system with NVIDIA® Jetson Xavier™ NX, 1 HDMI, 1 GbE PoE, 2 USB, and 9 to 36 VDC power input

    • IP67-rated design for outdoor edge AI applications
    • NVIDIA® Jetson Xavier™ NX with 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
    • High AI computing performance for GPU accelerated processing
    • -30°C to +50°C operating temperature range
    • 9 to 36 VDC wide range power input
    • Features M12 lockable I/Os
    • 1 IEEE 802.3af Gigabit PoE (15W)
    System
    Processor 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
    GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
    Chipset SoC
    Storage Onboard 16GB eMMC (via Jetson Xavier™ NX)
    1 x M.2 Key B 2242 with PCIe x2 NVMe SSD slot
    Memory 8GB 128-bit LPDDR4x onboard
    AI Accelerator NVIDIA® Jetson Xavier™ NX
    I/O Ports
    USB 2.0 1 x Dual USB 2.0 (M12)
    USB 3.0 -
    Serial -
    Video 1 x C3 HDMI with FHD supported
    Ethernet 1 x Gigabit PoE (IEEE 802.3af Gigabit PoE; 15W) (M12)
    Other Ports 4 x N-jack antenna opening with waterproof design
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    1 x SIM slot
    Operating System
    Operating System Linux Ubuntu 18.04 or later
    Power
    DC Input / Source Voltage Power Input Voltage 12VDC
    Operating Temperature
    Operating Temperature -30°C to 50°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Fanless
    Dimensions / Weight
    Construction Aluminum die-casting and heavy-duty steel, IP67
    Weight (kg) 4.2kg
    Dimensions 366.83 x 235 x 83.8 mm
    Certification
    Certification CE
    More Information
    CoolingFanless
