AIE510-ONX
SKU
AIE510-ONX-16GB-x
Lead time 21-30 days
0.00EUR

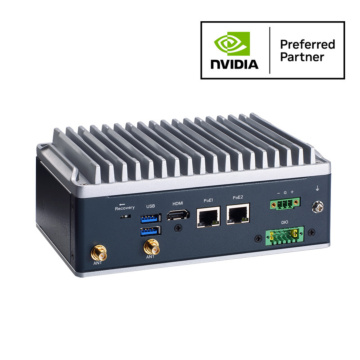

Fanless Edge AI System with NVIDIA® Jetson Orin™ NX 16GB, 1 HDMI, 1 GbE PoE, 1 2.5 GbE PoE, 2 USB, 1 COM/CAN, Isolated DIO (4-in/4-out), and 4-CH GMSL for AMR & Robotics
- NVIDIA® Jetson Orin™ NX (100 TOPS)
- Seamless speed: 5G, Wi-Fi 6E, and 2.5 GbE combined
- Easily manage: USB and PoE device power control
- Supports dual PoE for camera & sensor connectivity
- -25°C to +60°C operating temperature range
- Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
- Supports NVIDIA Isaac™ Robot Operating System (ROS) SDK for AI-enabled robots development
| System | |
| Processor | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| Chipset | SoC |
| Storage | 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot |
| Memory | 16GB 128-bit LPDDR5 onboard |
| AI Accelerator | NVIDIA® Jetson Orin™ NX 16GB (100 TOPS) |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2 x USB 3.2 |
| Serial | - |
| Video | 1 x HDMI 2.1 |
| Ethernet | 1 x 10/100/1000 Mbps PoE (via Orin™ NX) 1 x 10/100/1000/2500 Mbps PoE (Intel® I226-IT) |
| Other Ports | 1 x 8-CH DIO 5 x SMA-type antenna connector 1 x Debug port 1 x Recovery switch (for image update) 1 x Remote switch 1 x AT/ATX switch 1 x Reset button 1 x Power button 1 x 24 VDC power input connector 4 x Fakra-Z connector for GMSL1/2 automotive camera (only for AIE510-ONX-GMSL) |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 slot for Wi-Fi 6(E) 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) for Wi-Fi/LTE 1 x M.2 Key B 3042/3052 slot for 5G/LTE 1 x Nano SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 20.04 or later |
| Power | |
| DC Input / Source Voltage | 9 to 36 VDC (typical 12/24 VDC) with ignition power control Inrush current: 0.69A/3.08A |
| Operating Temperature | |
| Operating Temperature | -25°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | AIE510-ONX-16GB: 1.3 kg AIE510-ONX-GMSL: 1.5 kg |
| Dimensions | AIE510-ONX-16GB: 180 x 124 x 71.7 mm AIE510-ONX-GMSL: 180 x 124 x 80.7 mm |
| Certification | |
| Certification | CE, FCC Class A, UKCA, and E-Mark |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Cooling | Fanless |
