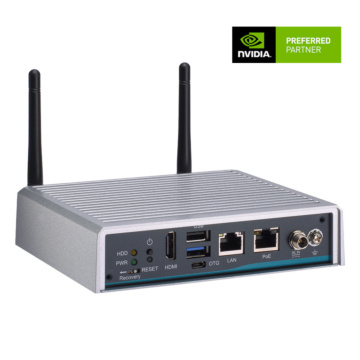

    Fanless Edge AI System with NVIDIA® Jetson Orin™ NX SoM, 1 x HDMI, 1 x GbE LAN, 1 x GbE PoE and 2 x USB

    • NVIDIA® Jetson Orin™ NX with 1024-core NVIDIA Ampere GPU
    • High AI computing performance for GPU-accelerated processing
    • Ideal for edge AI smart city applications
    • Supports one 15W GbE PoE for camera
    • Wide operating temperature from -30°C to +50°C
    • JetPack supported
    • Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
    System
    Processor 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

    16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
    GPU 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
    Chipset SoC
    Storage 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
    Memory 8GB: 8GB 128-bit LPDDR5 onboard
    16GB: 16GB 128-bit LPDDR5 onboard
    AI Accelerator NVIDIA® Jetson Orin™ NX
    I/O Ports
    USB 2.0 1x USB2.0
    USB 3.0 1x USB3.2 Gen2
    Serial -
    Video 1 x HDMI 2.0 with 4K2K supported
    Ethernet 1 x 10/100/1000 Mbps Ethernet (Via Jetson Orin™ NX)
    1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
    Other Ports -
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card slot
    1 x SIM slot
    Operating System
    Operating System Linux Ubuntu 20.04 or later
    Power
    DC Input / Source Voltage Power Input Voltage 12VDC
    Operating Temperature
    Operating Temperature -30°C to 50°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1 kg
    Dimensions 148.6 x 129.8 x 34.6 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Wall mounting kit
    DIN-rail kit
    VESA mount kit
    Certification
    Certification CE, FCC Class A
    More Information
    CoolingFanless
