AIE100-T2NX-1L1P

Customize AIE100-T2NX-1L1P
AIE100-T2NX-1L1P

* Required Fields

Your Customization
AIE100-T2NX-1L1P
AIE100-T2NX-1L1P

0.00EUR

Summary
    SKU
    AIE100-T2NX-1L1P
    Lead time 21-30 days

    0.00EUR

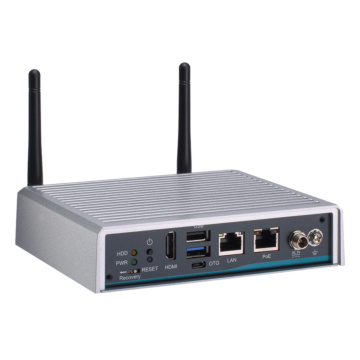

    Fanless Edge AI System with NVIDIA® Jetson™ TX2 NX, HDMI, GbE LAN, GbE PoE, 2 USB, and Allxon Device Management Solutions

    • NVIDIA® Jetson™ TX2 NX with Pascal™ architecture GPU with 256 CUDA cores
    • High AI computing performance for GPU-accelerated processing
    • Ideal for edge AI smart city applications
    • Supports one 15W GbE PoE for camera
    • Wide operating temperature from -30°C to +60°C
    • Supports JetPack
    • Supports Allxon Device Management Solutions (Allxon DMS)
    System
    Processor NVIDIA® Jetson™ TX2 NX
    Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor
    GPU 256-core NVIDIA Pascal™ GPU
    Chipset SoC
    Storage Onboard 16GB eMMC (via Jetson™ TX2 NX)
    1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
    1 x Micro SD slot
    Memory 4GB 128-bit LPDDR4 51.2GB/s
    AI Accelerator n/a
    I/O Ports
    USB 2.0 1 x USB 2.0
    USB 3.0 1 x USB 3.1 Gen1
    Serial n/a
    Video 1 x HDMI 2.0 with 4K2K supported
    Ethernet 1 x 10/100/1000 Mbps Ethernet (Via Jetson™ TX2 NX)
    1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
    Other Ports 4-CH DI
    4-CH DO
    2 x CANbus
    Expansion
    Expansion Interface
    1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    1 x SIM slot
    Operating System
    Operating System Linux Ubuntu 18.04
    Power
    DC Input / Source Voltage Power Input Voltage 12VDC
    Operating Temperature
    Operating Temperature
    -30°C to 60°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.0 kg
    Dimensions 148.6 mm (W) x 129.8 mm (D) x 34.6 mm (H)
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Wall mount kit
    DIN-rail kit
    VESA mount kit
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE, FCC Class A
    More Information
    CoolingFanless
