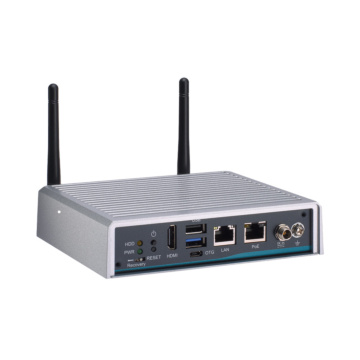

    Fanless Edge AI System with NVIDIA® Jetson Xavier™ NX, HDMI, GbE LAN, GbE PoE, 2 USB, and Allxon Device Management Solutions

    • NVIDIA® Jetson™ Xavier NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
    • High AI computing performance for GPU-accelerated processing
    • 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
    • Ideal for edge AI smart city applications
    • Supports one 15W GbE PoE for camera
    • Wide operating temperature from -30°C to +50°C
    • JetPack supported
    System
    Processor NVIDIA® Jetson™ Xavier NX
    CPU Performance 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
    Security Hardware
    Chipset SoC
    Storage Onboard 16GB eMMC (via Jetson Nano™)
    1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
    1 x Micro SD slot


    Memory 1 x 8GB 128-bit LPDDR4x onboard
    GPU / Graphics 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
    I/O Ports
    USB 2.0 1 x USB2.0
    USB 3.0 1x USB 3.1 Gen2
    1 x Micro USB for image flash
    Serial
    Video 1 x HDMI 2.0 with 4K2K supported
    Ethernet 1 x 10/100/1000 Mbps Ethernet (Via Jetson™ Xavier NX)
    1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
    Other Ports 1 x Recovery switch
    1 x Reset button
    1 x Power button
    1 x 12 VDC power input connector
    2 x SMA-type antenna connector
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    1 x SIM slot
    Operating System
    Operating System Linux Ubuntu 18.04
    Power
    DC Input / Source Voltage 12 VDC screw type
    Operating Temperature
    Operating Temperature -30°C ~ +60°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1 kg
    Dimensions 147.4 x 129.8 x 34.6 mm
    Enclosure
    Bezel
    Material Aluminum , IP40
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE, FCC certified
    More Information
    CoolingFanless
