Agent336

SKU

Agent336

Lead time 14-22 days

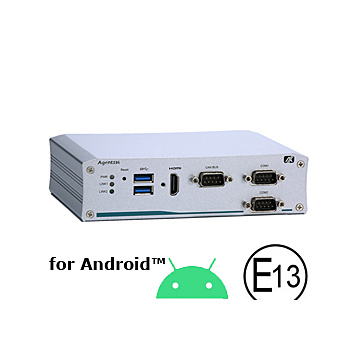

Fanless Embedded System with i.MX 8M Processor, COM, LAN, USB, DIO (2-in/2-out), Isolated CANBus, 2 PCIe Mini Card Slots, Power Design with ACC Ignition, e-mark

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

* RISC-based module (i.MX 8M) processor
* 2GB LPDDR4 memory onboard
* 8GB eMMC onboard
* 9 to 36 VDC wide range power input with terminal block
* Ready-to-run embedded Linux/Android operating system
* Wide operating temperature range from -40°C to +70°C
* E-Mark Certified
* Intelligent solution of vehicle power management (ACC ignition)

Specifications

System
Processor	NXP i.MX 8M Arm® Cortex®-A53, QuadLite 1.3GHz
CPU Performance
Chipset	SoC
Storage	1 x eMMC 8GB onboard 1 x Micro SD card socket
Storage Support
Memory	1 x 2GB LPDDR4 onboard
Memory (RAM)
I/O Ports
USB 2.0	-
USB 3.0	2x USB 3.0
Serial	2 x RS-232/422/485
Video	1 x HDMI
Ethernet	1 x RJ45 GbE
Other Ports	1 x Isolated CANBus (D-SUB 9) 1 x Isolated 2-in/2-out DIO (TB 2 x 4P)
Operating System
Operating System	Yocto Linux, Kernel L4.9.51, Linux 4.9.88_2.0.0, Android O8.1.0 (Linux Kernel 4.9.78)
Power
Source Voltage	9 to 36 VDC, typical: 12/24 VDC
Power Management
Expansion Slots
Expansion	1 x PCI Express Mini card socket (USB & PCIe interface) 1 x PCI Express Mini Card socket with 1 SIM socket inside (USB & PCIe interface)

Operating Temperature
Operating Temperature	-40ºC to 70ºC
Humidity Range	5% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution	Fanless
Dimensions / Weight
Weight (kg)	0.5 kg
Dimensions	163.8 x 118 x 44 mm
Enclosure
Bezel
Material	Aluminium
Mounting	Wall mount
Note *
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE Class A, E-Mark
